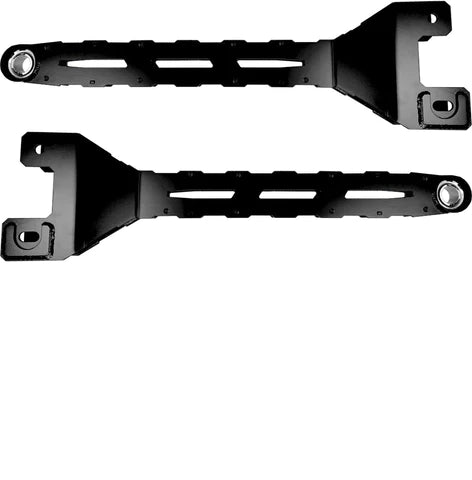

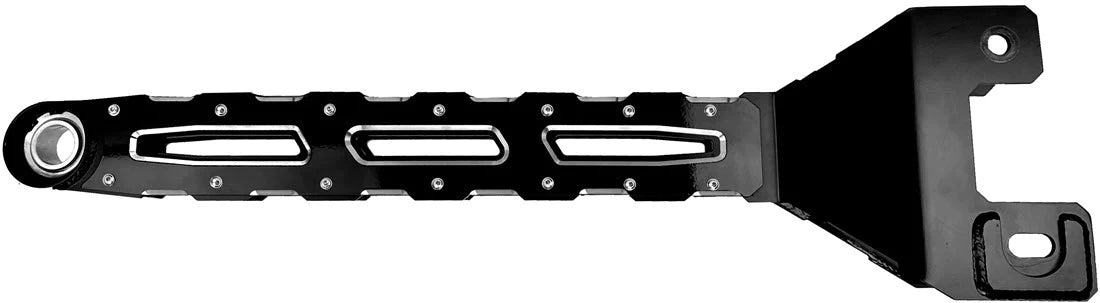

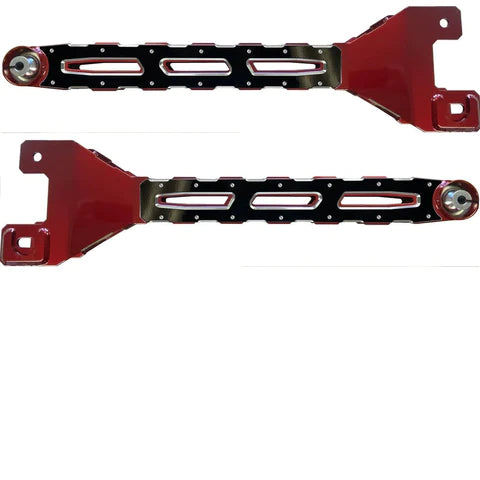

Stryker Identity Series Boxed Radius Arms 2005-2010 F250/F350

Stryker Off Road Design Identity Series Radius Arm

Stryker Bolt Series Radius Arm

Blackout Version

• STOCK HEIGHT – 4” OF LIFT WHEN MOUNTED IN THE OEM RADIUS ARM FRAME MOUNT (YOU CAN ACHIEVE GREATER LIFT HEIGHTS WHEN PAIRED WITH A DROP BRACKET SUCH AS OUR OPTIONAL IDENTITY SERIES SHOWN)

• THIS STRYKER DESIGN IS IDEAL TO RESTORE THE CASTER ON TRUCKS WITH LEVELING KITS.

• ALSO GREAT FOR SMALL LIFTS TO GET RID OF UNSIGHTLY RADIUS ARM DROP BRACKETS

• WORKS WITH ANY MANUFACTURERS LEVELING KITS OR LIFT SYSTEMS

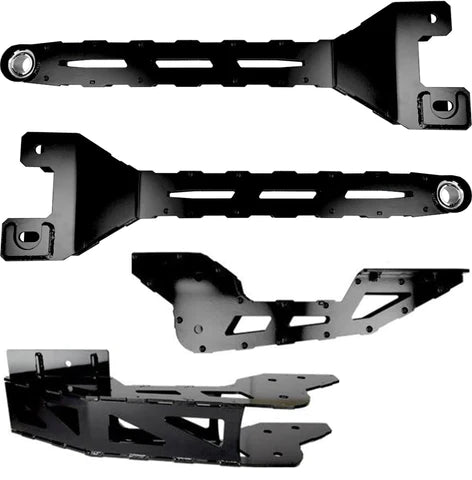

Stryker Off Road Design (OPTIONAL) Identity Drop Bracket (for Lifts 4 1/2" to 8 1/12")

• 3 1/2" drop cand support lifts from 3.5" to 7.5"

• 4 1/2" drop can support lifts from 4.5" to 8.5"

Features:

• 2005-2010 F250/350/450 4WD (gas or diesel)

• Stock height – 4” of lift when mounted in the OEM radius arm frame mount (can achieve greater lift when paired with a drop bracket)

• Ideal to restore caster on trucks with leveling kits

• Works with any manufacturers leveling kits or lift systems

• ALL ¼” construction throughout

• Massive 3.25” OD uniball with COM24 Chromoly bearing and misalignments for bind free movement and a more solid, improved ride and articulation over OEM arms

• Cam bolt to adjust caster on the vehicle (not need to swap out cam plates to achieve desired caster)

• ½” additional tire clearance at full steering lock over OEM arms for larger tires

•  LIFETIME WARRANTY (restrictions apply *)

Includes:

• Two Radius Arms with mounted faceplates
• 2 sets (4 total) misalignment bushings
• 2 bolts with matching nuts (for the lower axle mount to accommodate the caster  adjustment shims)
• 2 sets (4 total) caster shims

NOTE: Requires reuse of 4 of your 6 existing Radius Arm Bolts. Stryker supplies new CAM Bolt, Nut and CAM washers for the drop bracket assembly.

Fitment:

2005 to 2010 F250 F350 with stock to 4" of lift or higher depending on your optional drop*
