FKF 2003-2018 Dodge 2500/3500 Tube Style Traction Bars

Fully Bolt On FKF tube style traction bars for 3.5" or 4" Axle Diameter Dodge Trucks

These bars use 2" .250" wall DOM steel tubing, 1/4" HRPO steel mounts and 1.25" (76,000LB) load rated heim joints. We are proud to say these bars use some of the highest strength components on the market. In other words, if you bend, crack or damage these bars or any fabricated component in this kit, we will replace them. NO QUESTIONS ASKED LIFETIME WARRANTY.

Included components-

2- 2" .250" wall DOM tube traction bars

2- 2" .250 wall DOM tube with HD poly Bushing and sleeve

2- 1.25” 12tpi Thread Heim Joint (76,000lbs load rating)

4- Heim Joints misalignment spacers

2- 1/4" Steel rear bolt on axle mounts

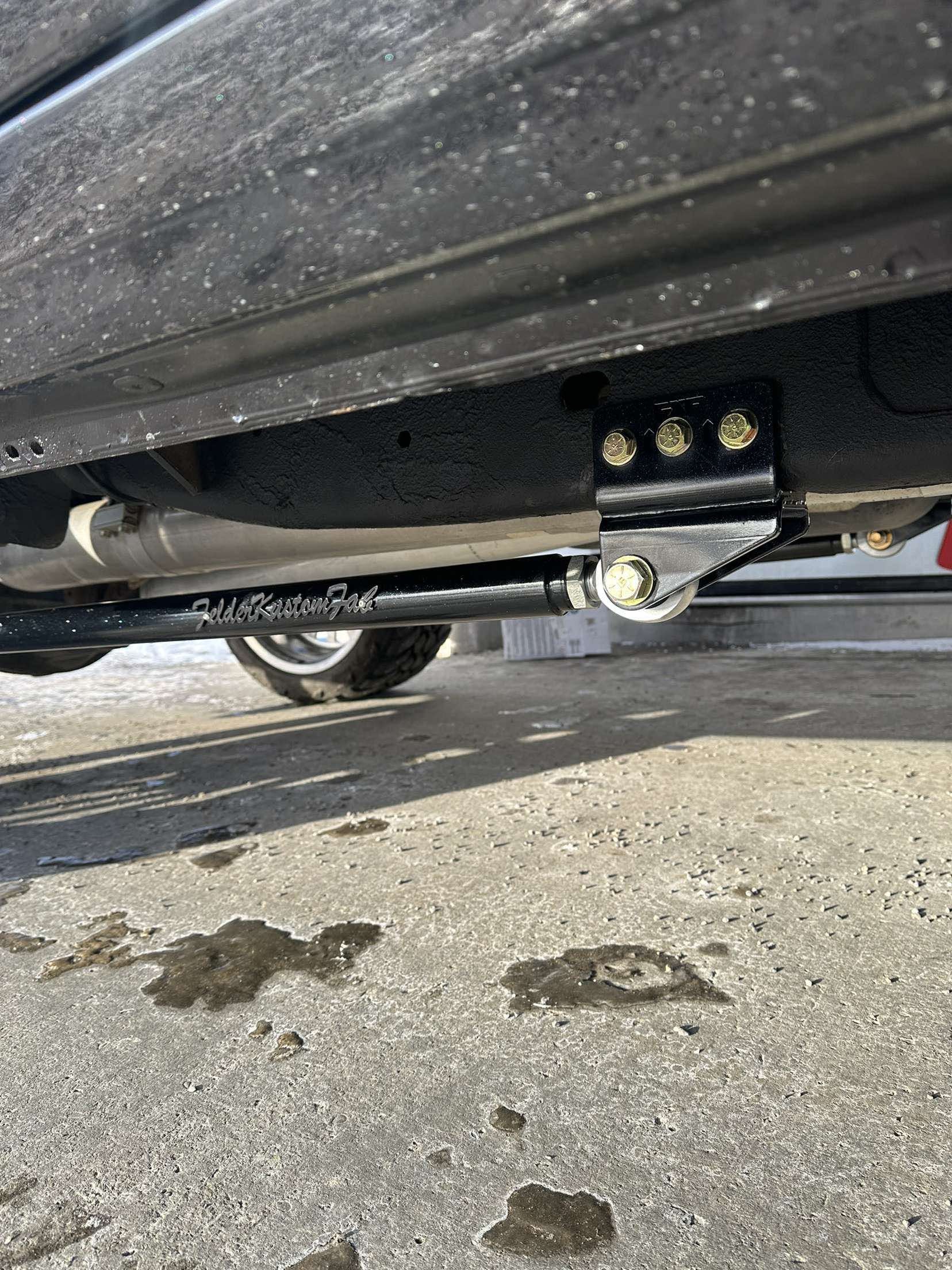

2- 1/4" steel front bolt on frame brackets

2- Grade 8 5/8"- 4" long bolts

2- Grade 8 3/4"- 4" long bolts

2- Grade 8 5/8 Nuts

2- Grade 8 3/4" Nuts

6- Grade 8 1/2" - 3 1/2" long bolts

10- Grade 8 1/2" nuts

20- 1/2" washers

4- 5/8" washers

4- 3/4" washers

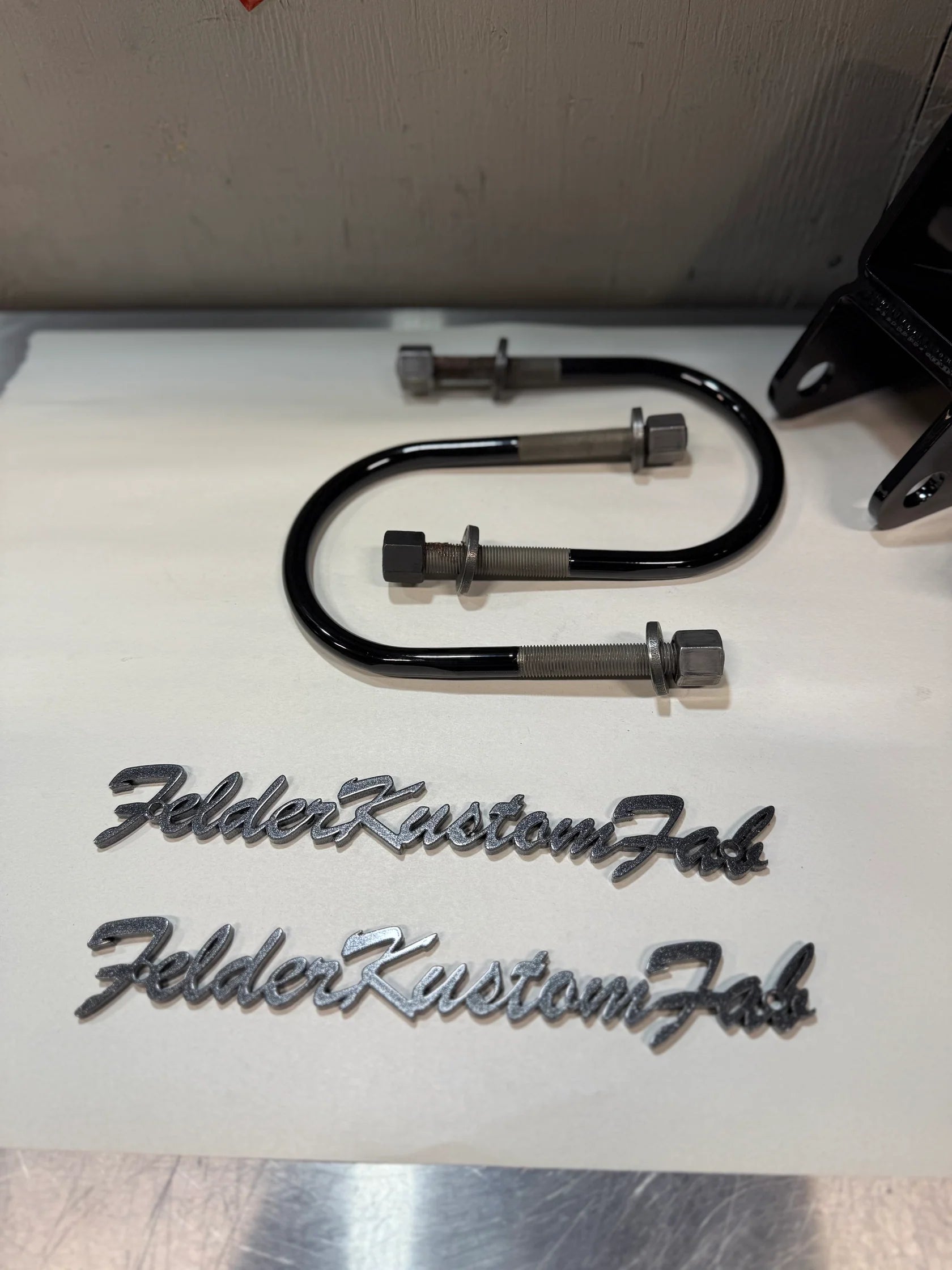

2- 3/16" FelderKustomFab badges

4- Stainless button head badge mounting bolts

2- New 4" Round U bolts

Available in any length up to 80". Please measure to a flat unwidened section of your frame. Always measure before ordering but we recommend

Mega Cab/Crew Cab/Single Cab Short Box- 58"

Crew Cab Long box- 70"

Please State desired traction bar length and axle diameter in the cart notes

If you need insight on your axle diameter, please feel free to reach out through our contact form and we would be happy to help

The FelderKustomFab badge will come raw brushed stainless steel, if you would like it done in a custom color, please state in the cart notes.

Will not work with aftermarket airbags or rear coil spring equipped trucks

If custom powder coat color is desired for the bars or mounts- Select “Custom Color” and we will reach out once the order is placed

Colour Link- https://www.prismaticpowders.com/canada

These are built to order, please allow a 2-3 week lead time at the moment.
